Salvimar
Salvimar Metal Speargun
Salvimar Metal Speargun
1.0 / 5.0
(0) 0 total reviews
Regular price
$299.95
Regular price
Sale price
$299.95
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Salvimar Metal Speargun:

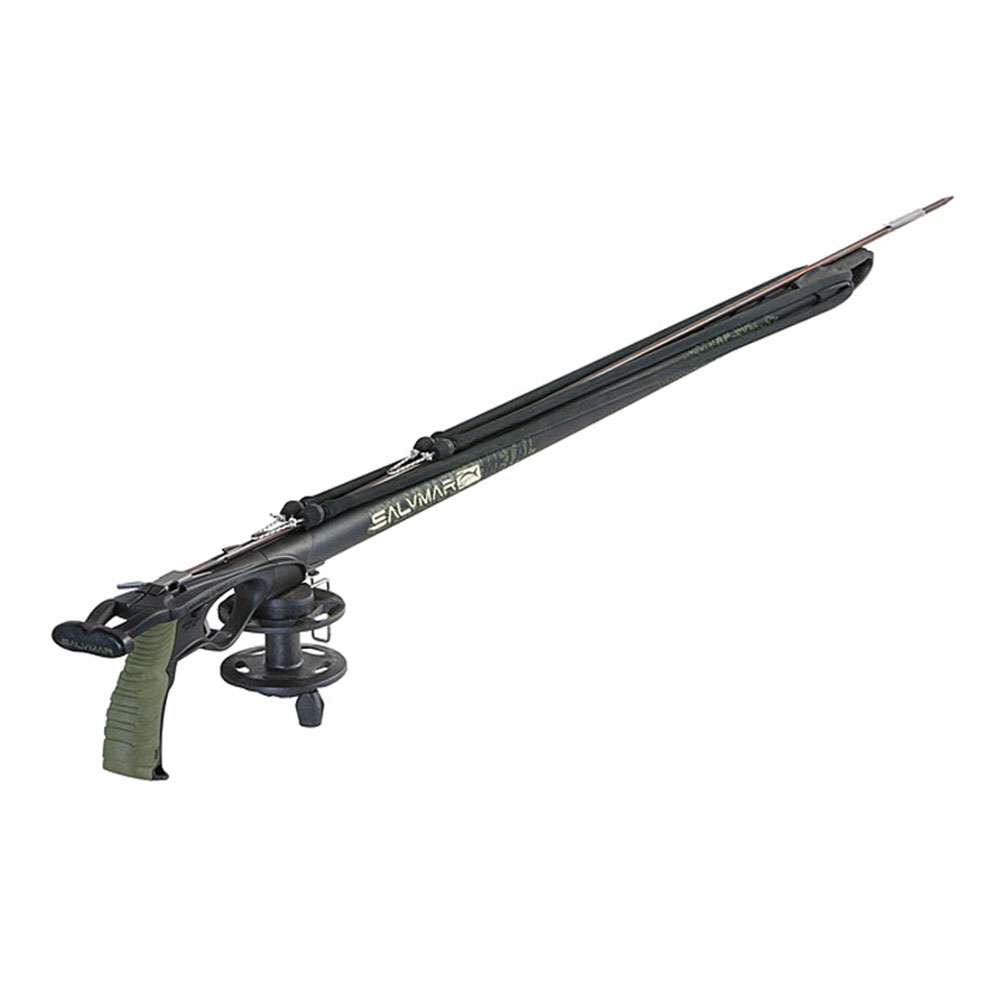

Aircraft grade aluminum stock with integrated shaft guide. Tapered profile sectioned throughout for improved maneuverability. Handle with METAL trigger mechanism. Trigger sensitivity adjustment. Removable chest loading butt pad. Enclosed track muzzle for the 115cm and 125cm. Open multiband muzzle for all other sizes. Dyneema hand-tied wishbones and bands. Shaft with laser welded shark fin tabs. Comes stock with the reel.

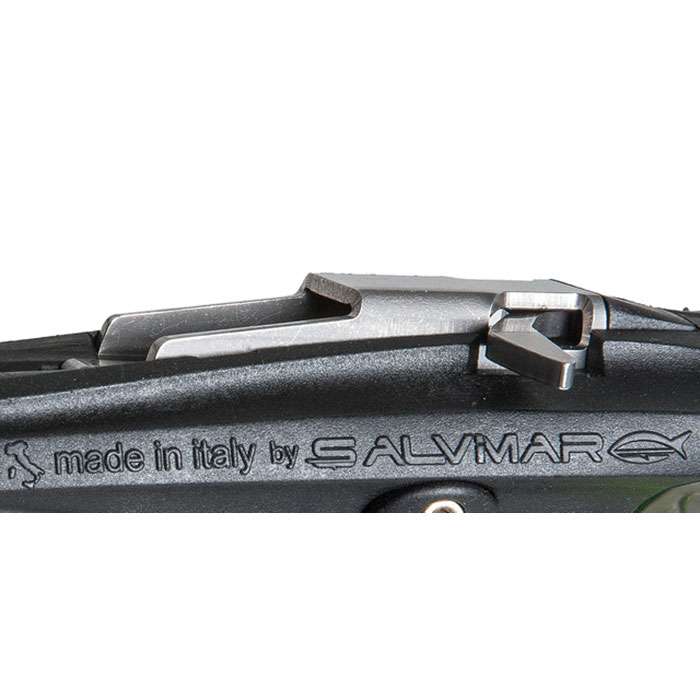

The heart of the Metal is the handle with its new release mechanism, where the manufacturing quality increases immensely thanks to the M.I.M. technology, Metal Injection Molding, with which even tiny metal components, such as the different elements of the release mechanism and the trigger, are no more obtained through mechanical machining, but utilizing an injection system into molds, which permits extremely high-level precision.

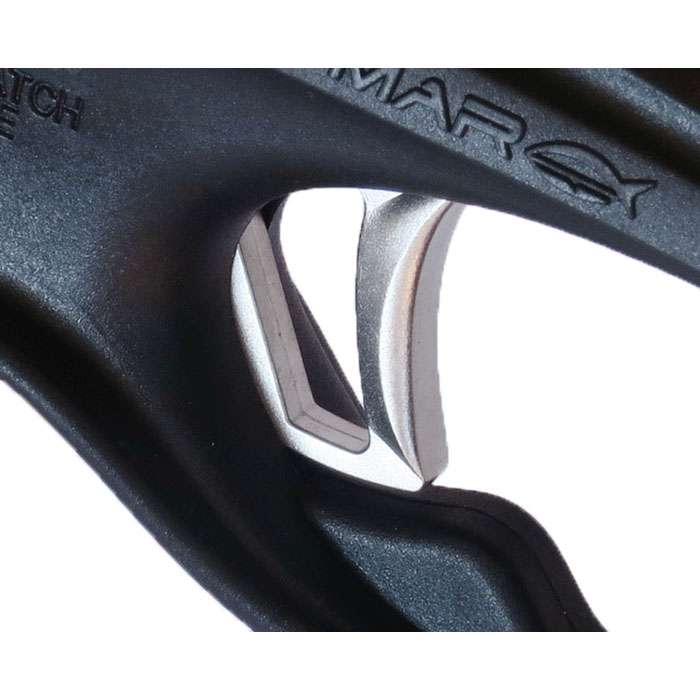

The technical department of Salvimar has decided to utilize the M.I.M technology on as many components as possible among the steel ones of the release mechanism. Well-visible is the trigger, which has an amazing design and perceived quality, unbeatable on the market.

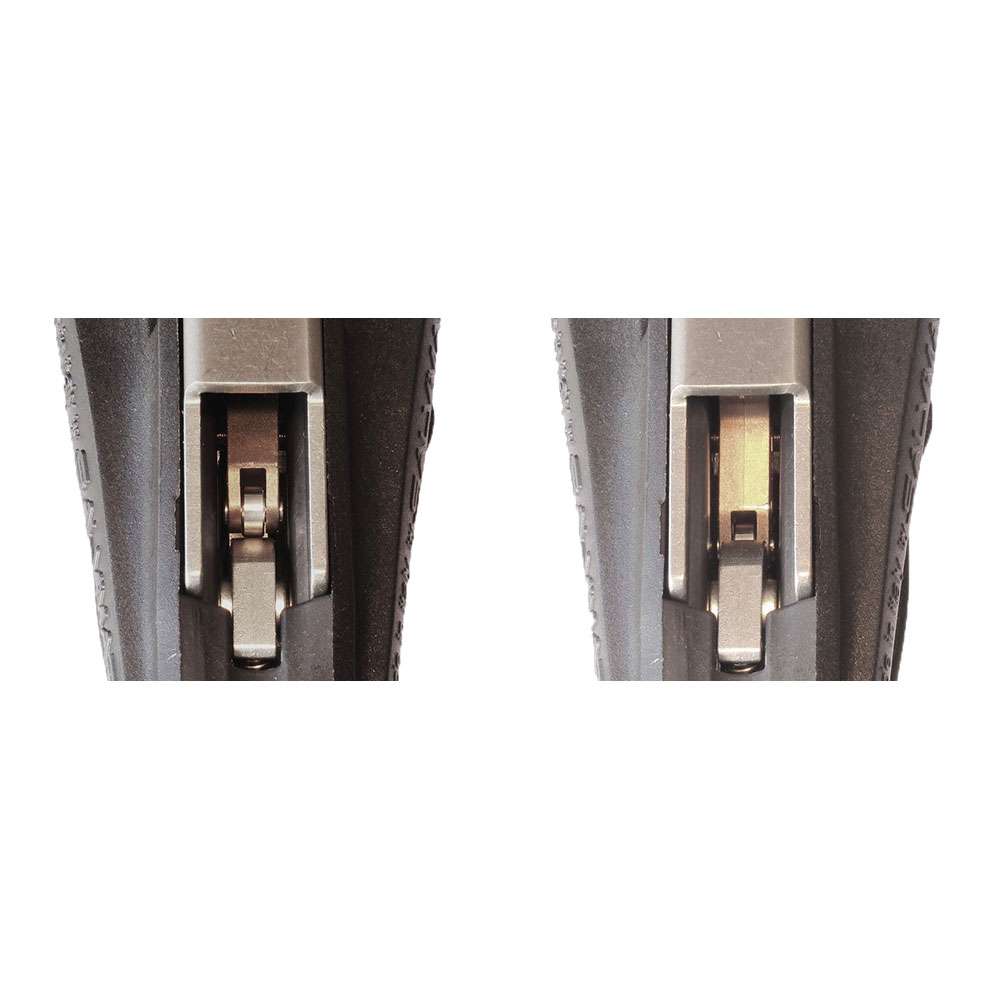

To optimize the release system, which is made of steel, a small wheel has been added to the release tooth, permitting the transformation of friction, from sliding into rolling type, eliminating almost entirely the sliding between surfaces. This solution reduces sensibly friction and permits a lighter and better feel on the trigger, requesting less force on the latter when shooting. Data by Salvimar indicates that the effort on the trigger, considering a load on the shaft and release mechanism equal to 100 Kg, which can be obtained with two 16 mm diameter circular elastic bands, is equivalent to 0.6 Kg, compared to more than 1 Kg in the traditional system.
But this is not all: the solution with the micro wheel reduces by far the wear of the metal components in contact with each other. The tests by Salvimar have evidenced that two surfaces of the same metal sliding one on the other, even though polished and thermally treated, if not oil lubricated, in time tend to seize, to a point that determines a change in the angles of contact and consequently an important increase in the force needed to pull the trigger.
Still on the reliability point and the possibility of maintaining the correct angles between the elements of the release mechanism, the thickness of the steel case has been doubled to 2 mm, so to avoid deformations and shifting of the shafts that block the elements to the case. The case itself has also been reduced in dimensions, meaning the hole in the handle has also been reduced, with the result of having the latter stiffer.
The handle has also been modified reducing by 1 cm the distance between the trigger and the palm, with the effect of a more versatile grip for everyone.

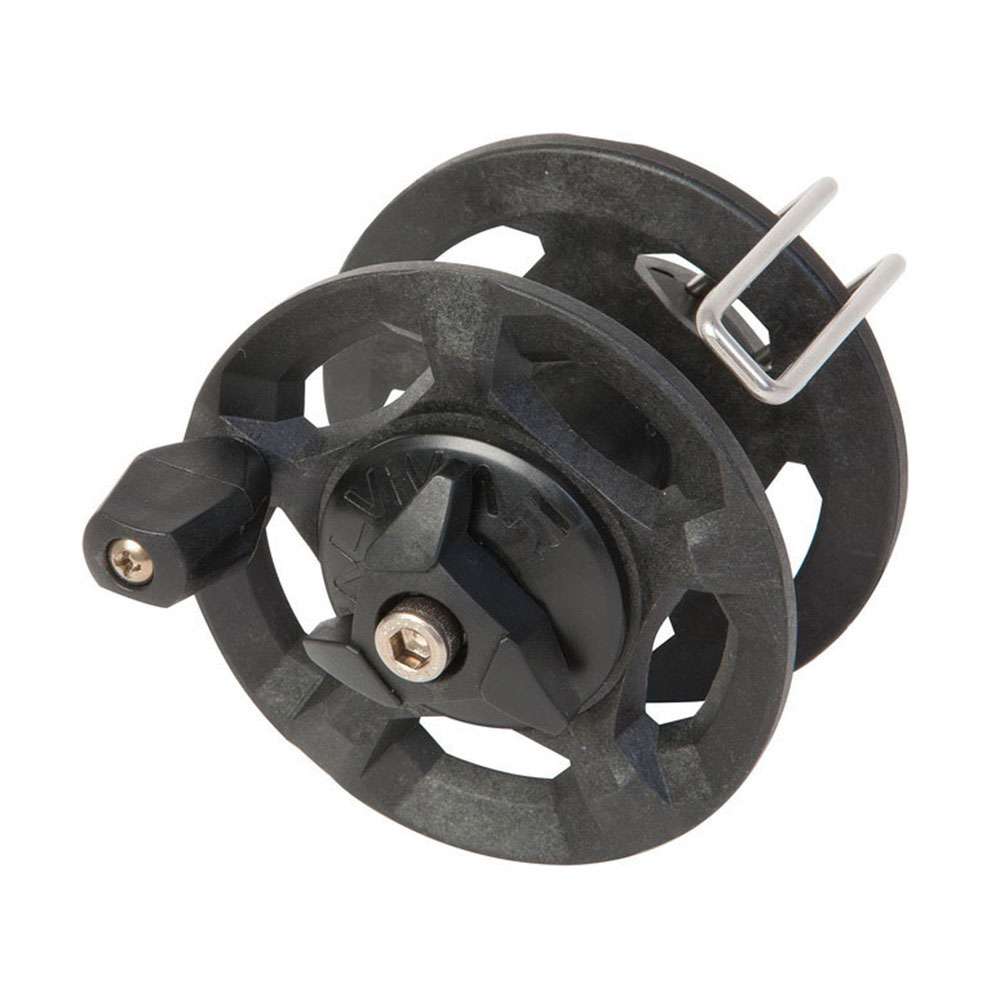

But novelties are even more, since the reel, named Max Reel, is new and with an impressive design, great stiffness, 30% glass loaded nylon, and central axle in metal co-stamped with Derlin (great solution, as only Nylon solutions can break in time). The clutch is oversized for greater resistance and the possibility of precise regulation. Max Reel can load up to 75 meters of 1.5 mm line.
Aircraft grade aluminum stock with integrated shaft guide. Tapered profile sectioned throughout for improved maneuverability. Handle with METAL trigger mechanism. Trigger sensitivity adjustment. Removable chest loading butt pad. Enclosed track muzzle for the 115cm and 125cm. Open multiband muzzle for all other sizes. Dyneema hand-tied wishbones and bands. Shaft with laser welded shark fin tabs. Comes stock with the reel.
The heart of the Metal is the handle with its new release mechanism, where the manufacturing quality increases immensely thanks to the M.I.M. technology, Metal Injection Molding, with which even tiny metal components, such as the different elements of the release mechanism and the trigger, are no more obtained through mechanical machining, but utilizing an injection system into molds, which permits extremely high-level precision.
The technical department of Salvimar has decided to utilize the M.I.M technology on as many components as possible among the steel ones of the release mechanism. Well-visible is the trigger, which has an amazing design and perceived quality, unbeatable on the market.
To optimize the release system, which is made of steel, a small wheel has been added to the release tooth, permitting the transformation of friction, from sliding into rolling type, eliminating almost entirely the sliding between surfaces. This solution reduces sensibly friction and permits a lighter and better feel on the trigger, requesting less force on the latter when shooting. Data by Salvimar indicates that the effort on the trigger, considering a load on the shaft and release mechanism equal to 100 Kg, which can be obtained with two 16 mm diameter circular elastic bands, is equivalent to 0.6 Kg, compared to more than 1 Kg in the traditional system.
But this is not all: the solution with the micro wheel reduces by far the wear of the metal components in contact with each other. The tests by Salvimar have evidenced that two surfaces of the same metal sliding one on the other, even though polished and thermally treated, if not oil lubricated, in time tend to seize, to a point that determines a change in the angles of contact and consequently an important increase in the force needed to pull the trigger.
Still on the reliability point and the possibility of maintaining the correct angles between the elements of the release mechanism, the thickness of the steel case has been doubled to 2 mm, so to avoid deformations and shifting of the shafts that block the elements to the case. The case itself has also been reduced in dimensions, meaning the hole in the handle has also been reduced, with the result of having the latter stiffer.
The handle has also been modified reducing by 1 cm the distance between the trigger and the palm, with the effect of a more versatile grip for everyone.
But novelties are even more, since the reel, named Max Reel, is new and with an impressive design, great stiffness, 30% glass loaded nylon, and central axle in metal co-stamped with Derlin (great solution, as only Nylon solutions can break in time). The clutch is oversized for greater resistance and the possibility of precise regulation. Max Reel can load up to 75 meters of 1.5 mm line.
