Meandros Short Trigger Mechanism
Meandros Short Trigger Mechanism
1.0 / 5.0
(0) 0 total reviews
Regular price
$79.95
Regular price
Sale price
$79.95
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Meandros Short Trigger Mechanism

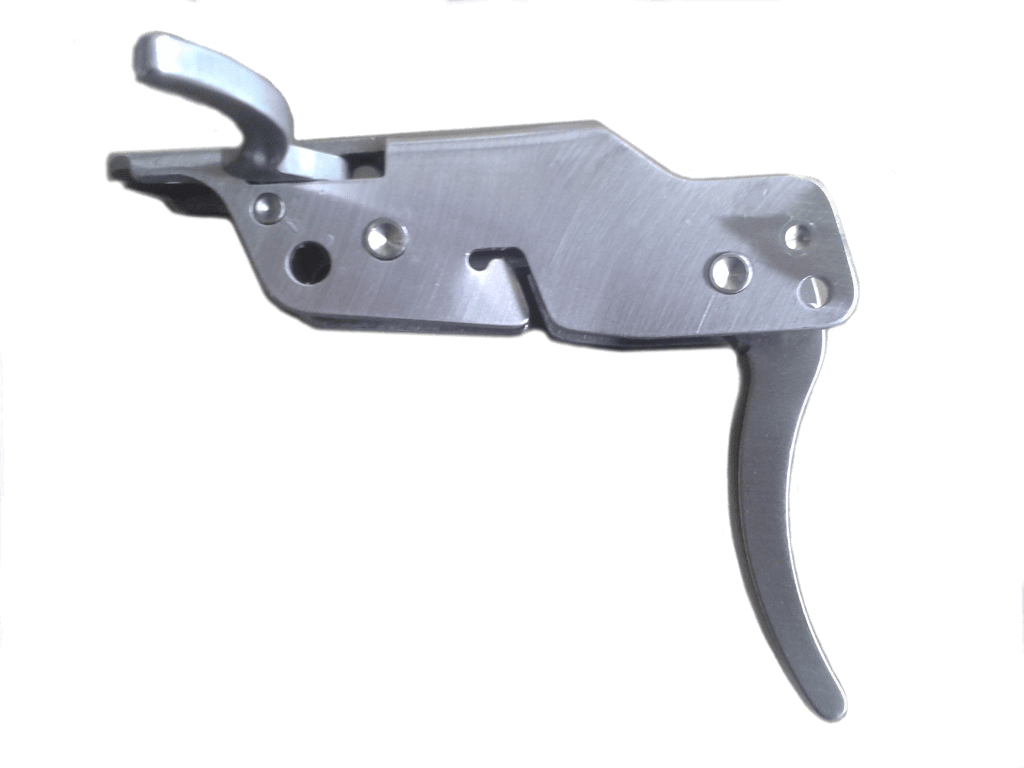

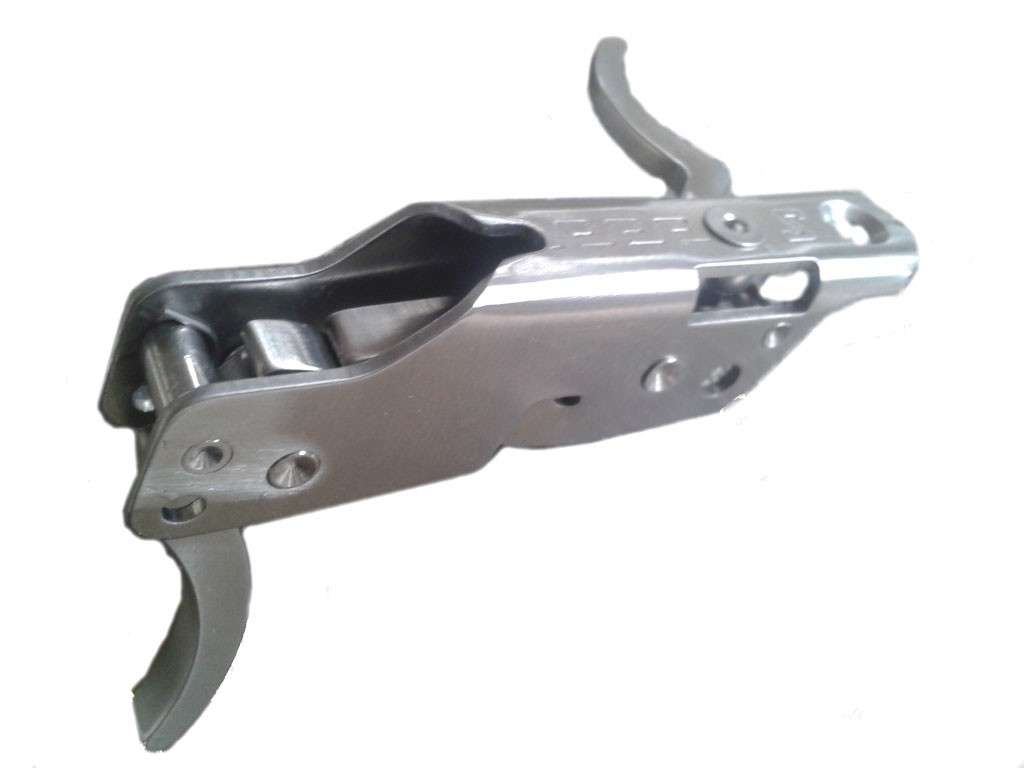

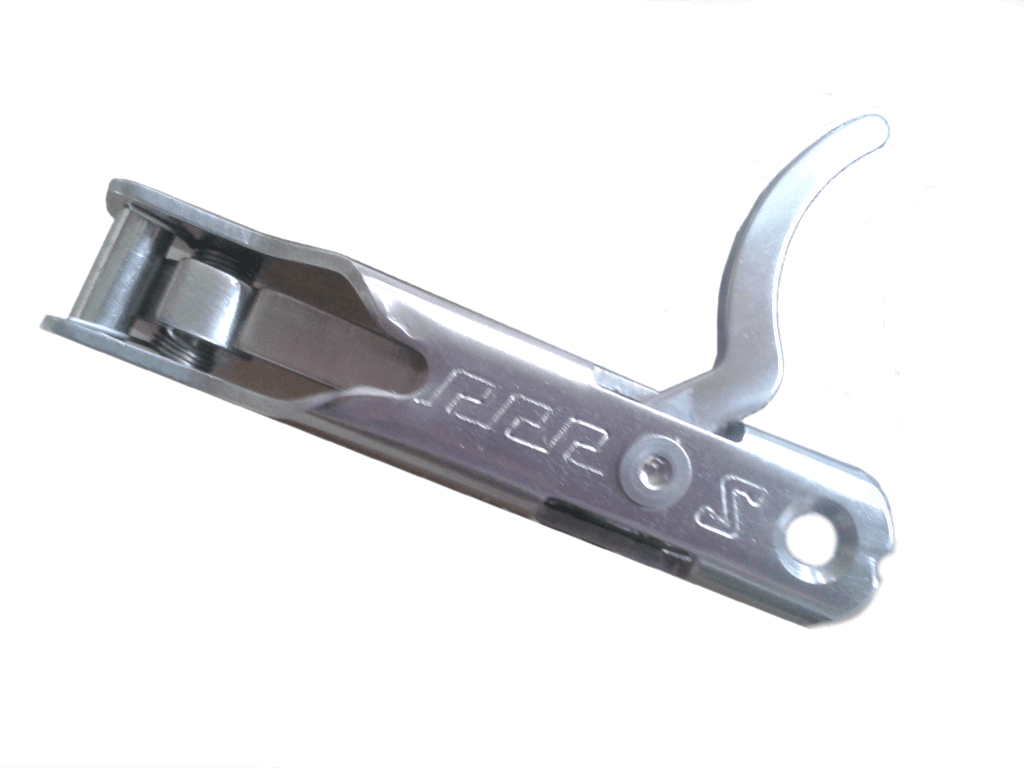

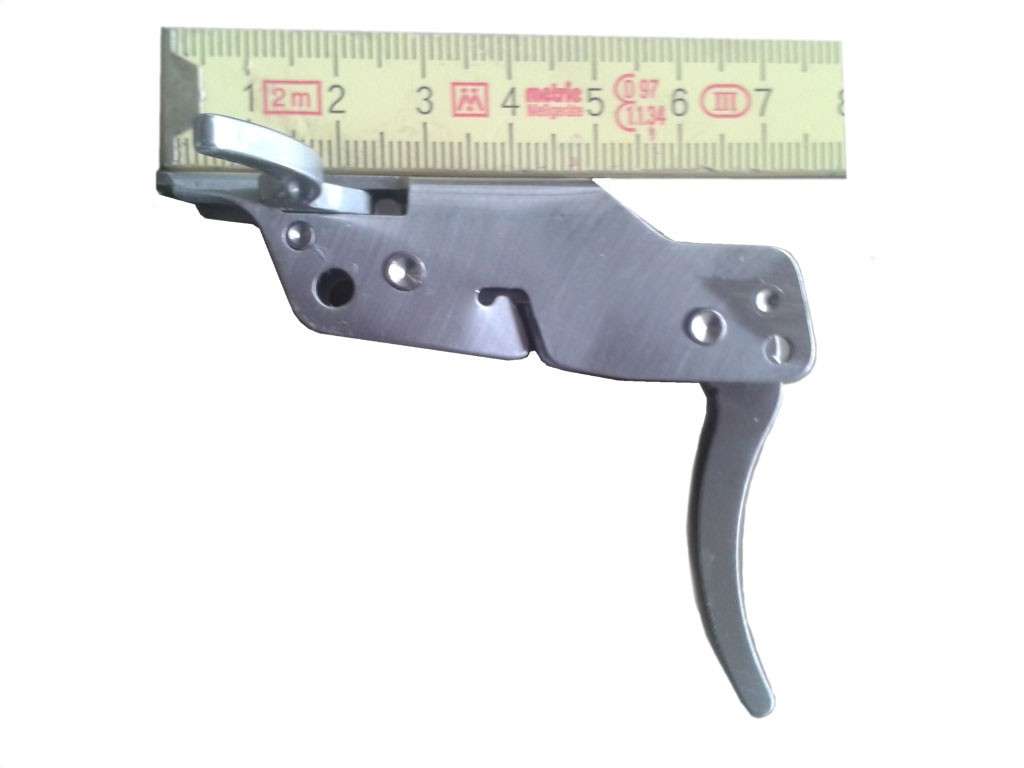

Ergonomic inverted mechanism of minimalistic design, with a vertical and two horizontal mounting points. Sturdy construction with minimum profile and working length, minimum space required for installation within the body of the handle. It has a built-in automatic horizontal and bilateral line release which is on the back of the mechanism. The position of the line release at the back of the mechanism contributes to not reduce the strength of the body of the handle, while the user can place it on which side wants. Compatible with European-style shafts 6-10 mm. Ability to attach line in the tail of the spear (for 6-8 mm spears). Includes pins and a screw for secure mounting within the body of the weapon.
For easiest installation we have available an extra easy installation jig sold seperately Meandros DIY Trigger Mechanism Installation Jig
CL= Two horizontal support points – Large lever ratio – Heavy duty 8mm spear engaging peg.
L= Two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg.
LS= Three vertical and two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg
SL = Two horizontal and one vertical support points – medium lever ratio – Normal 6mm spear engaging peg.
S = Two horizontal and one vertical support points – moderate lever ratio – Normal 6mm spear engaging peg
Ergonomic inverted mechanism of minimalistic design, with a vertical and two horizontal mounting points. Sturdy construction with minimum profile and working length, minimum space required for installation within the body of the handle. It has a built-in automatic horizontal and bilateral line release which is on the back of the mechanism. The position of the line release at the back of the mechanism contributes to not reduce the strength of the body of the handle, while the user can place it on which side wants. Compatible with European-style shafts 6-10 mm. Ability to attach line in the tail of the spear (for 6-8 mm spears). Includes pins and a screw for secure mounting within the body of the weapon.
For easiest installation we have available an extra easy installation jig sold seperately Meandros DIY Trigger Mechanism Installation Jig
CL= Two horizontal support points – Large lever ratio – Heavy duty 8mm spear engaging peg.
L= Two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg.
LS= Three vertical and two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg
SL = Two horizontal and one vertical support points – medium lever ratio – Normal 6mm spear engaging peg.
S = Two horizontal and one vertical support points – moderate lever ratio – Normal 6mm spear engaging peg
