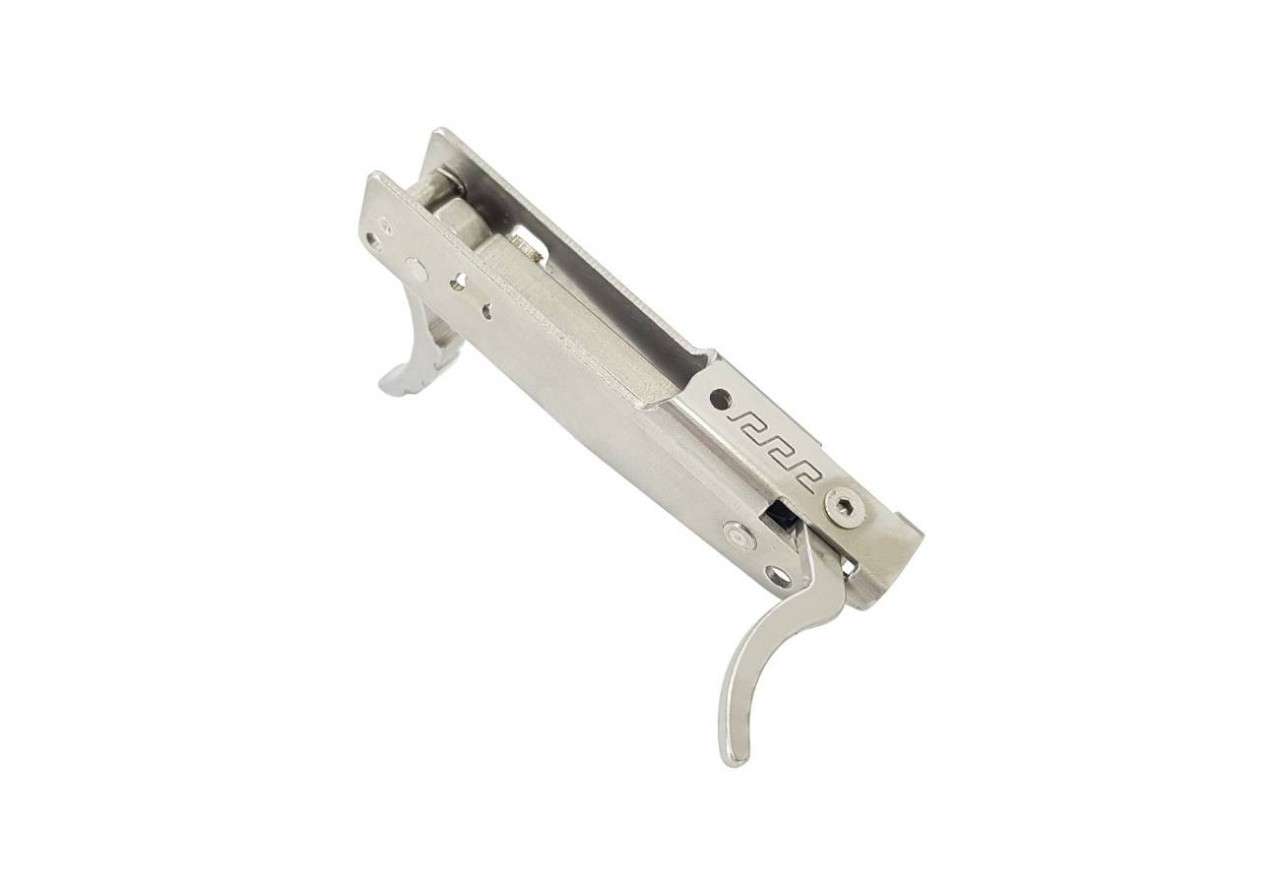

Meandros Reverse Trigger Mechanism L

Meandros Inverted Trigger Mechanism L

A 5 model series of inverted mechanisms with great levers dynamics that results in unaffected sensitivity even at large loads. Designed for easy mounting with vertical and horizontal support points. High quality robust construction with low labor profile, increased strength with excellent usability and functionality. Side ambidextrous automatic, mechanical, internal line release at the back part of the mechanism which prevents incorrect installation but also maintains the body profile and the strength of the handle. Works with European & American type spears of 6-10 mm diameter. The ability of crimping the cord at the tail of the spear permits spears of 6-8mm diameter. Includes shaft (pins) and mounting screws for secure placement within the body of the gun. The mechanism is legally safeguarded. Ideal for DIY. For easiest installation we have available an extra easy installation jig sold seperately Meandros DIY Trigger Mechanism Installation Jig

CL= Two horizontal support points – Large lever ratio – Heavy duty 8mm spear engaging peg.

L= Two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg.

LS= Three vertical and two horizontal support points – Large lever ratio – Normal 6mm spear engaging peg

SL = Two horizontal and one vertical support points – medium lever ratio – Normal 6mm spear engaging peg.

S = Two horizontal and one vertical support points – moderate lever ratio – Normal 6mm spear engaging peg.
