Cetma Composites Mantra Carbon Fiber Fin Blades
Carbon Fiber Fins (Blades) MANTRA key features:
1) 100% IM7 carbon fibre.
2) The material used is 100 % Carbon Prepreg produced with a hot melt impregnation system, using a micro-toughened tetra-functional epoxy resin.
3) 3D-Tech: Proprietary Technology, of CETMA COMPOSITES exclusive know-how, with high pressure, high temperature, and a high degree of applied vacuum, which leads to a component with 0% void level, without defects, with a uniform matrix/reinforcement ratio across the whole blade.
4) FEM Design: MANTRA blades are optimized through an accurate Design by means of Finite Element Software (FEM). The Design through FEM software allows an optimized distribution of the stiffness, with the aim to obtain a deformation ensuring the maximum hydrodynamic efficiency.
5) Signature model: developed in collaboration with the world champion CWT bi fins Michele Giurgola.

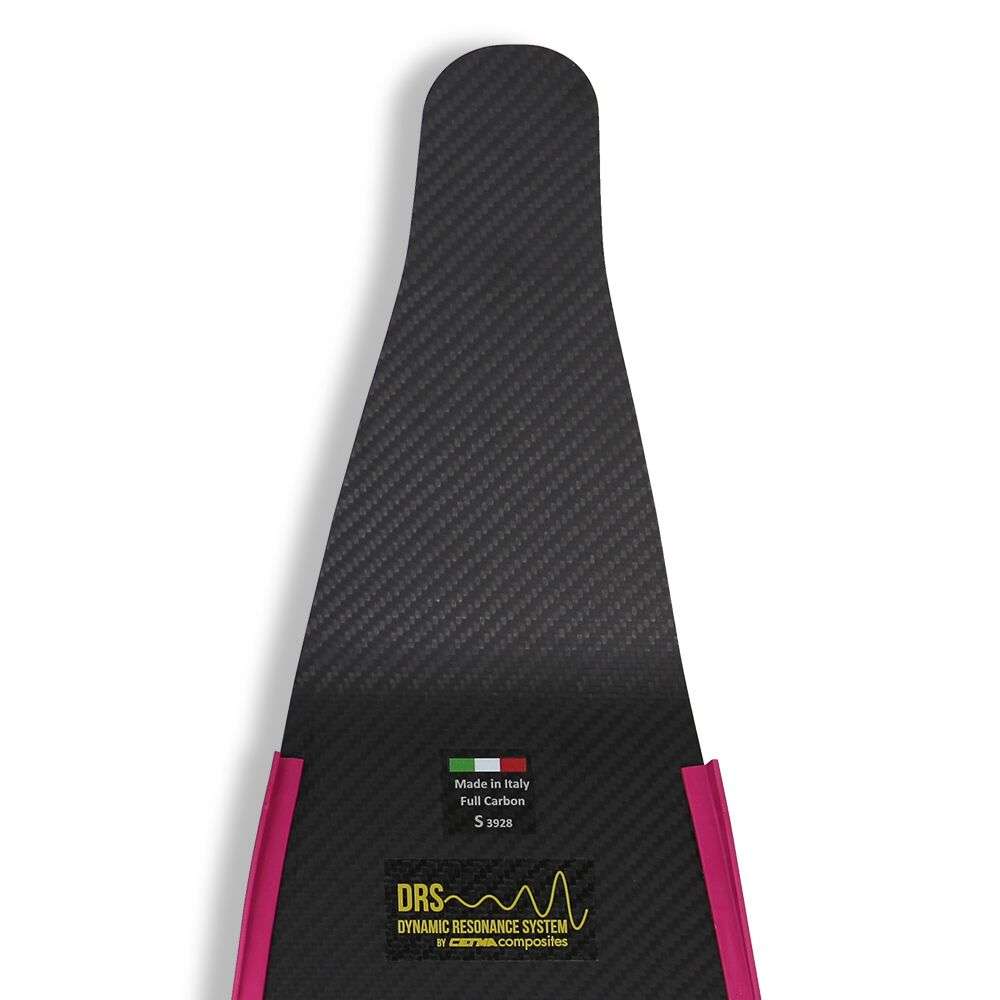

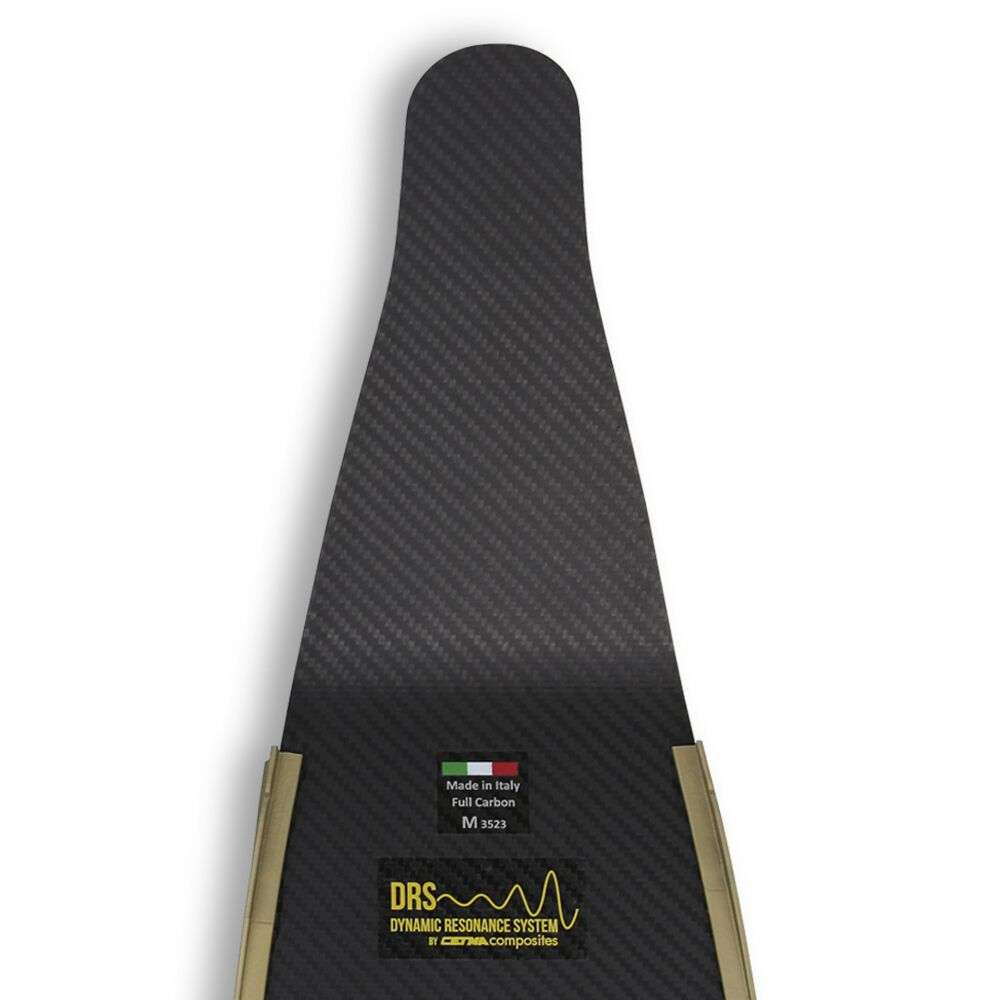

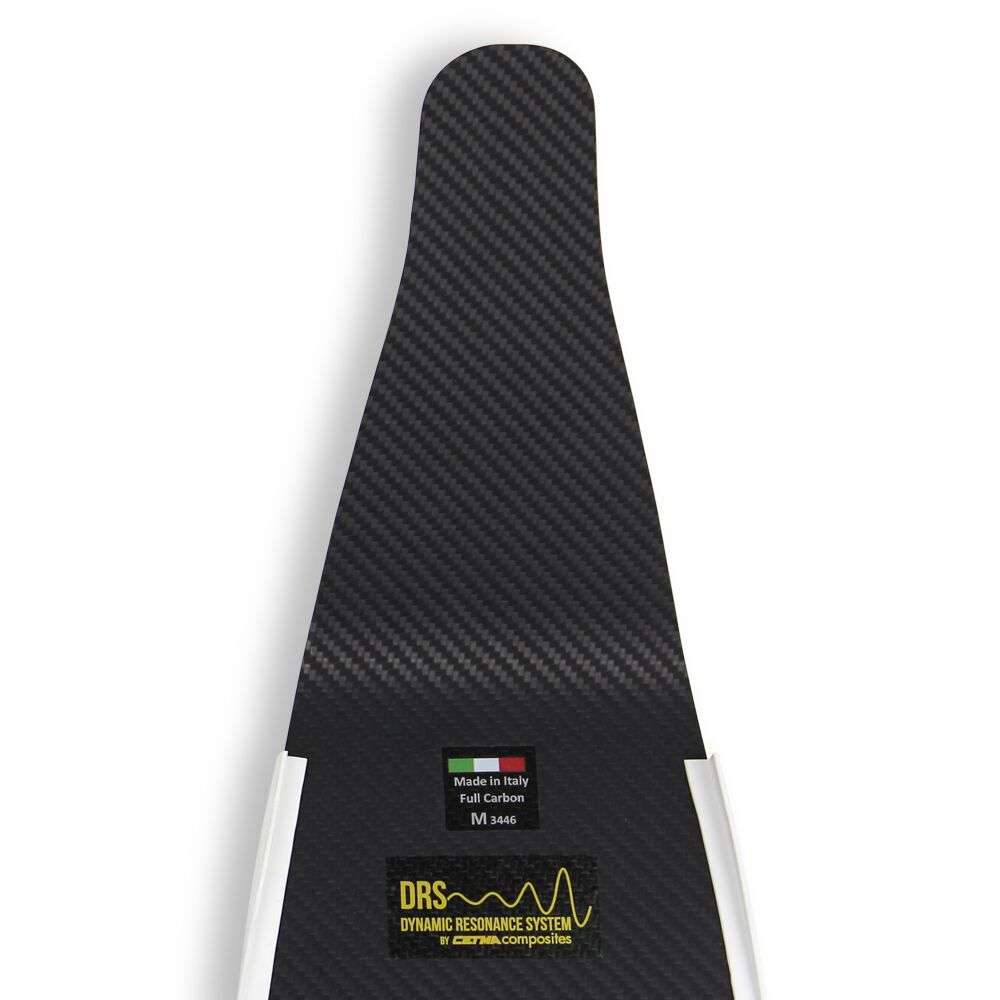

6) DRS (Dynamic Resonance System) innovative and exclusive CETMA COMPOSITES system. DRS implies that MANTRA blades were designed to reach resonance in a definite frequency of kick. The resonance phenomenon is a well-known physical phenomenon characterizing all the structures. Simplifying, when a structure is forced with a frequency close to its natural frequency the amplitude of vibration increases in a very efficient way (low damping). Operating by distribution of the stiffness along the blade we “tuned” the blades to certain natural frequencies. So when the blade is driven, by kicking, with a certain frequency range the user feels it is a very low effort with an outrageous thrust. This study is done using a laser vibrometer (LDV) to perform a modal analysis, which helps in the stiffness distribution design of the blade.
7) Dimensions: Width 195 mm; Length from the bending angle 742 mm; bending angle 33 degrees.
8) Available stiffness: super soft (XS), soft (S), medium (M).

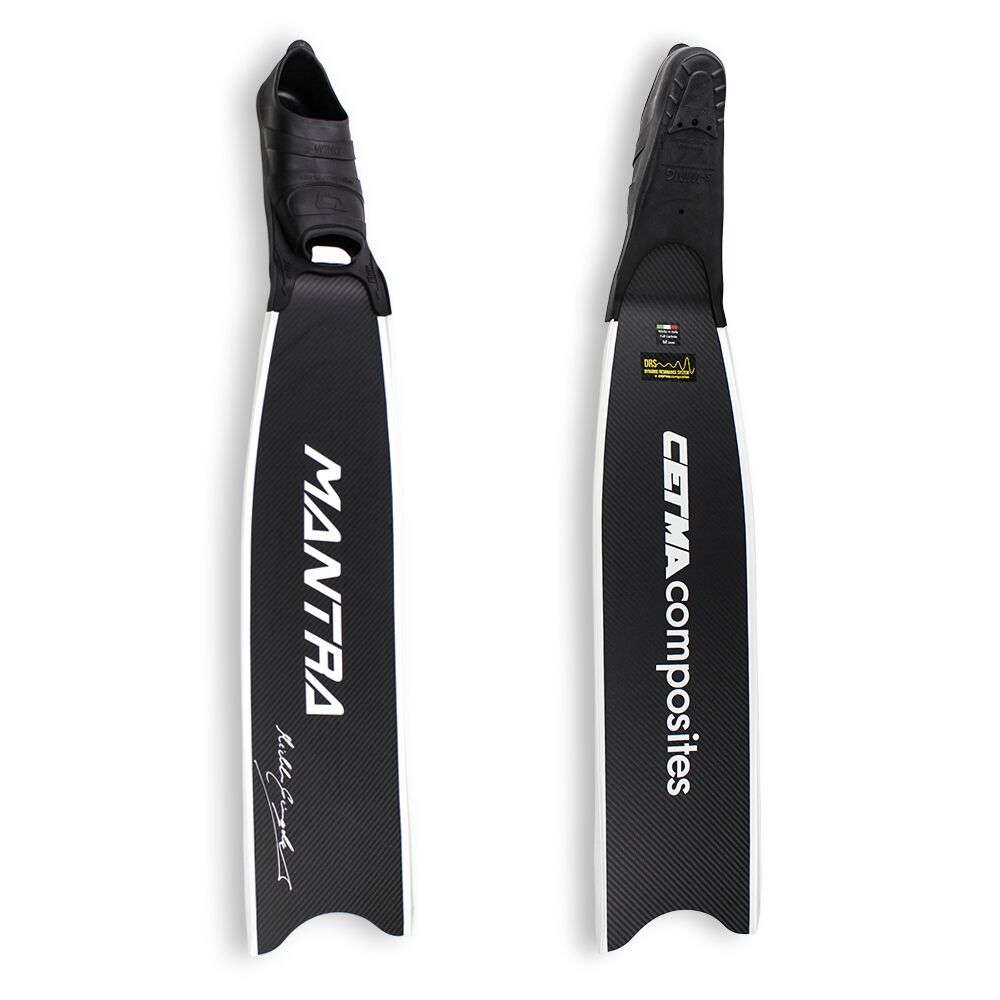

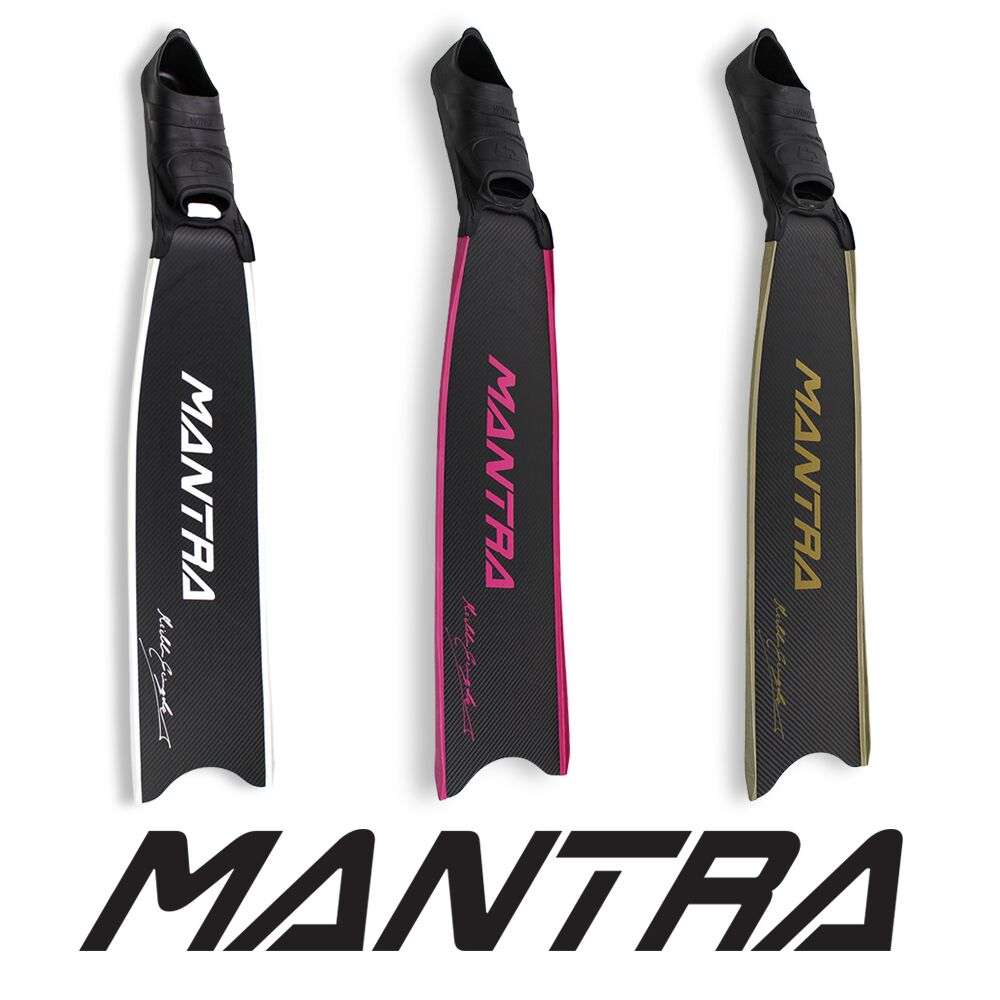

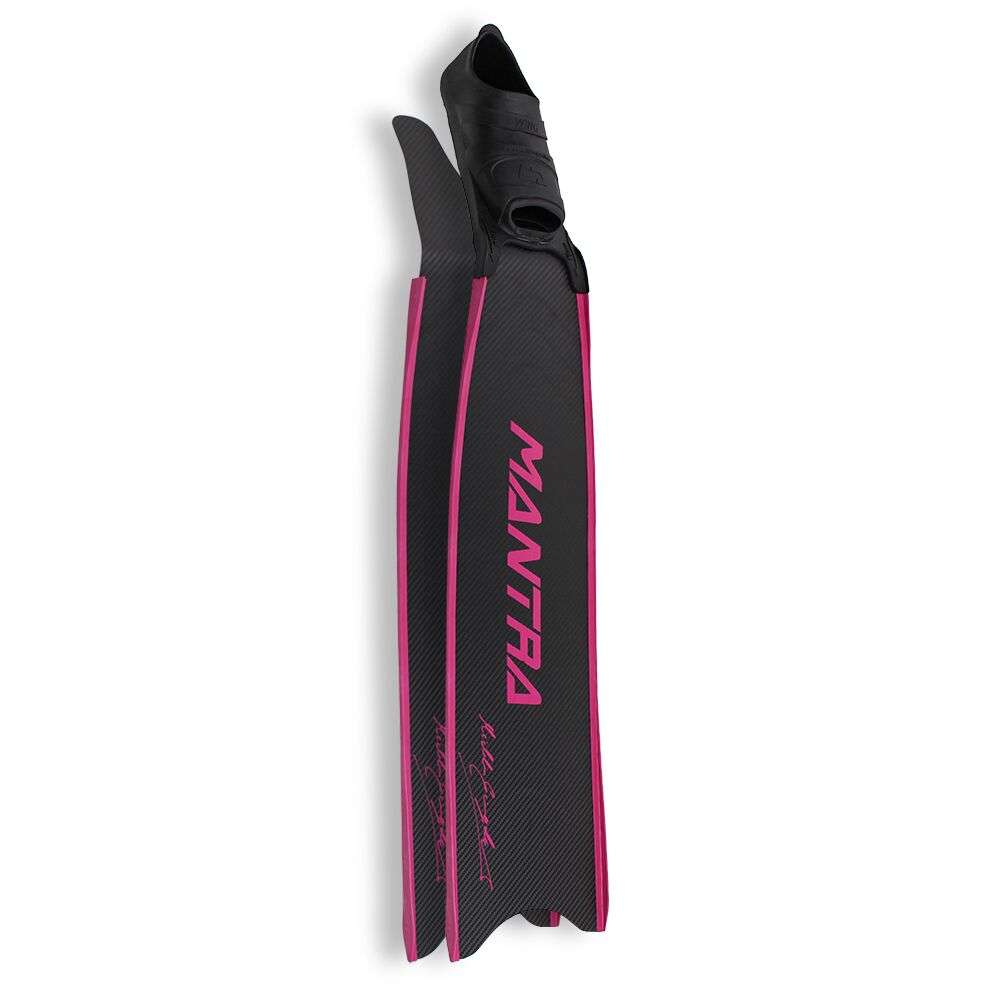

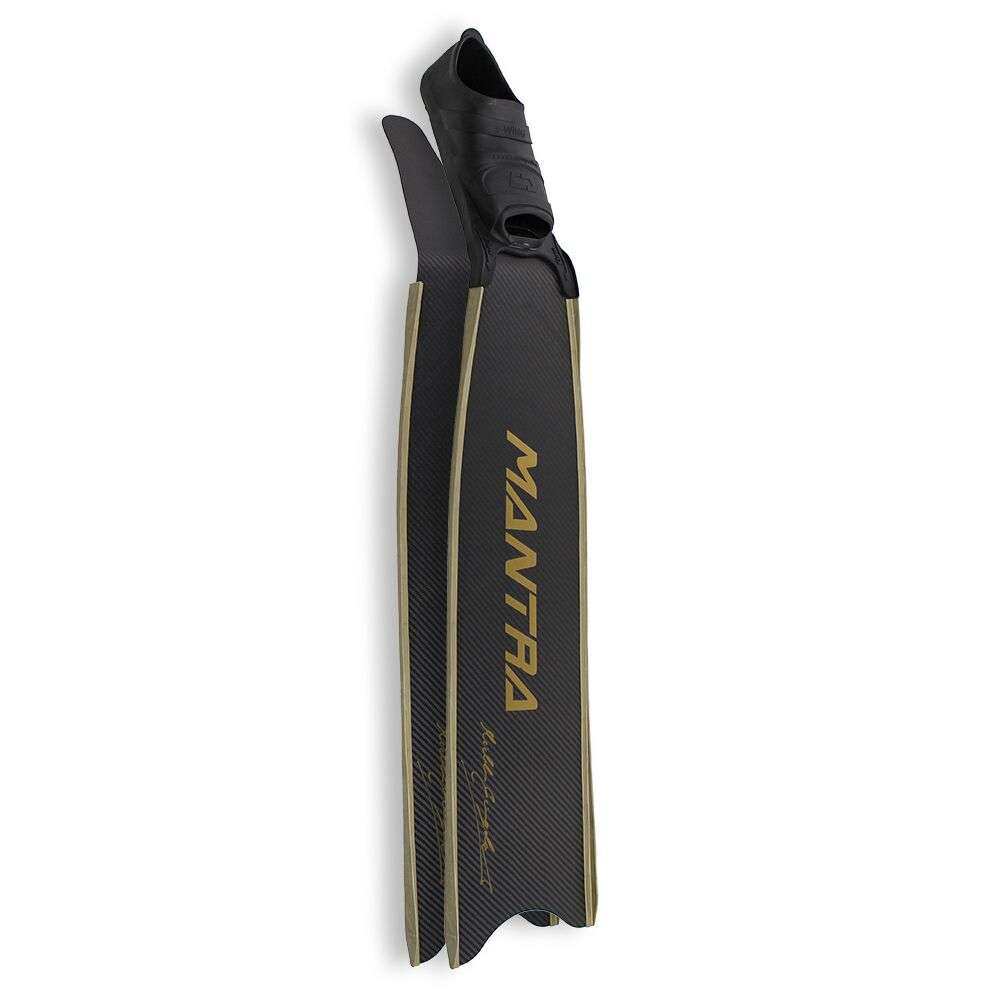

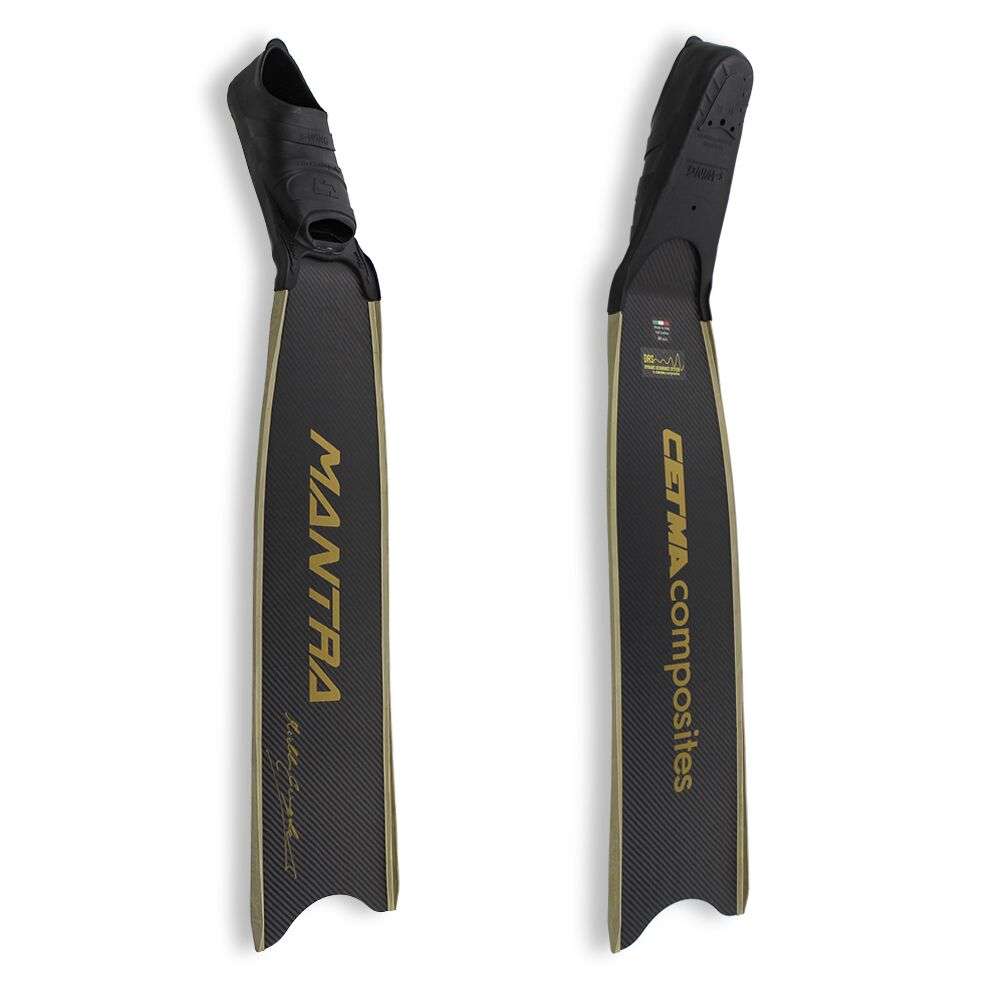

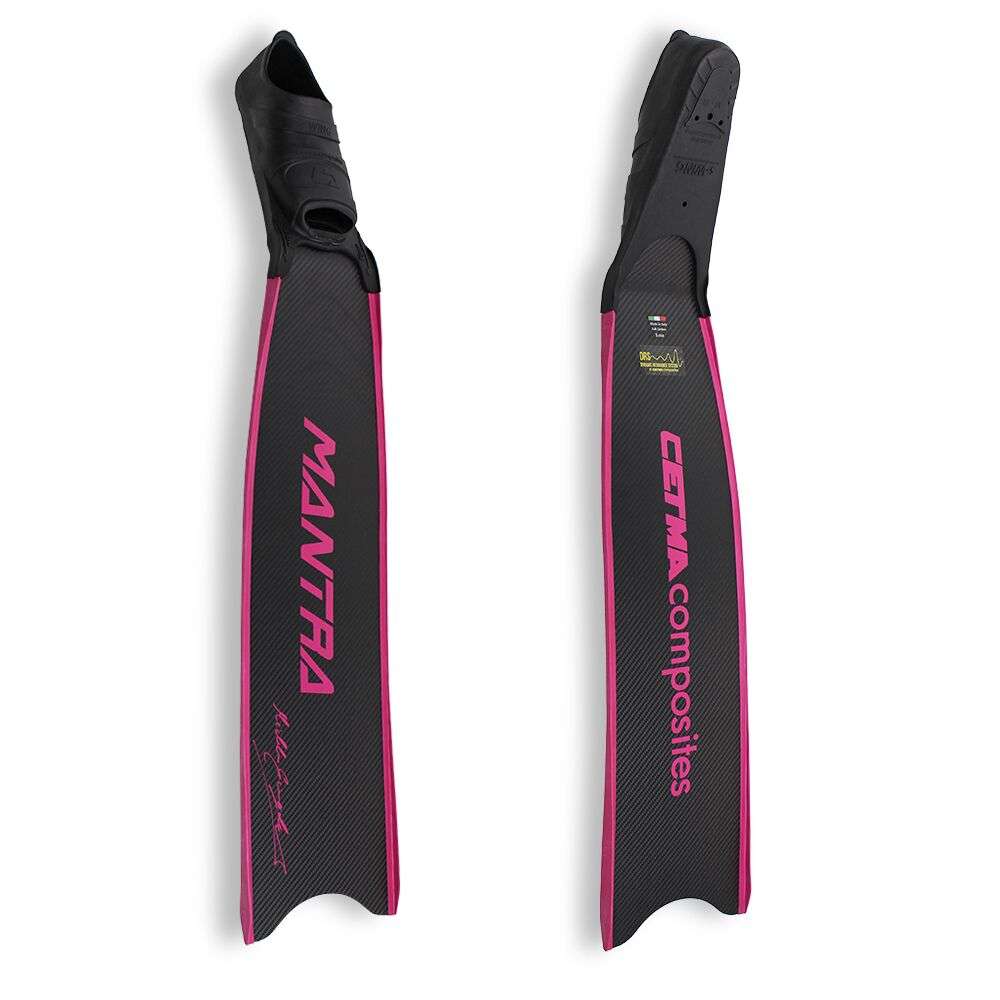

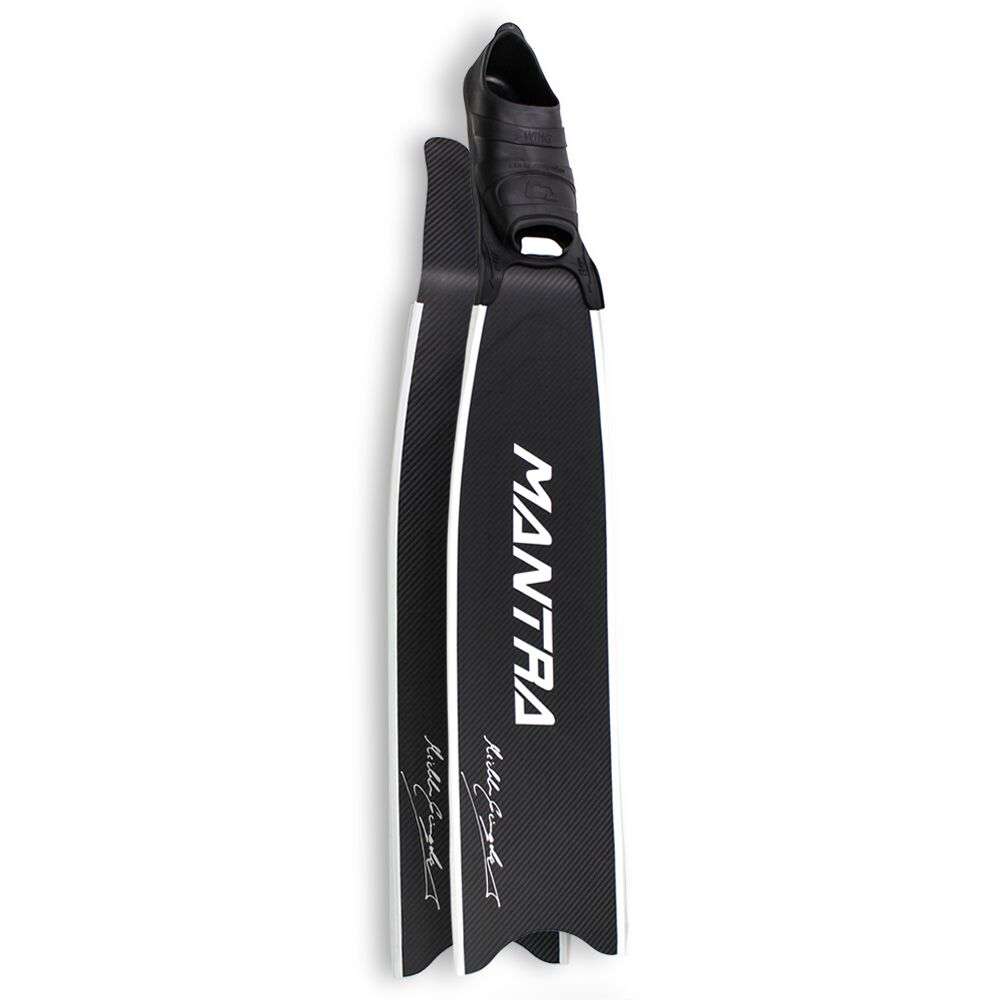

9) Colour choice: White, Gold, Magenta.
10) Footpocket fitting: CETMA COMPOSITES, Mares and Pathos.
11) Water rail: CETMA COMPOSITES Water rails with variable height and high efficiency.
12) Prizes and awards: Italian Champion 2016 CWT bi-fins -92 meters in 2 minutes and 55 seconds.
